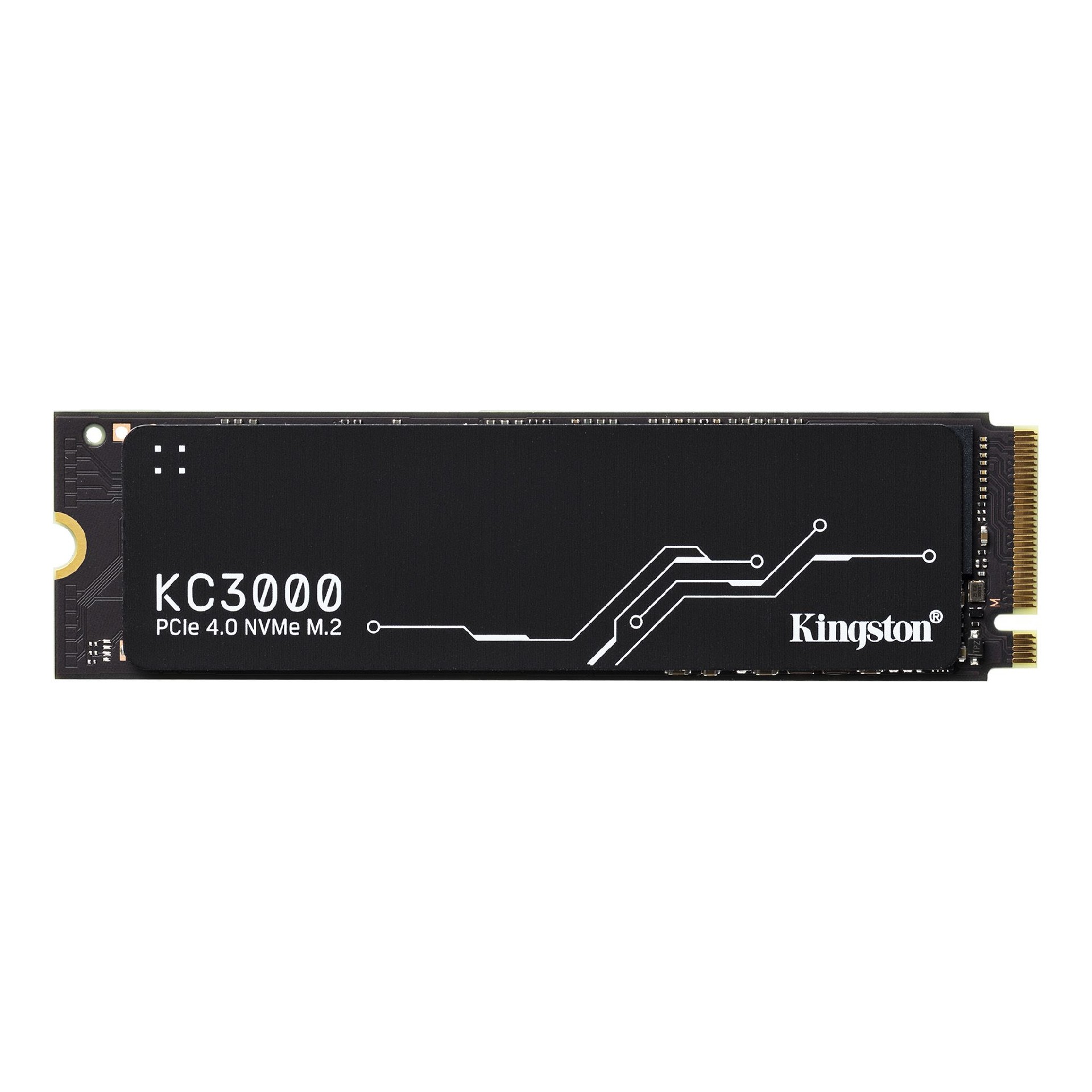

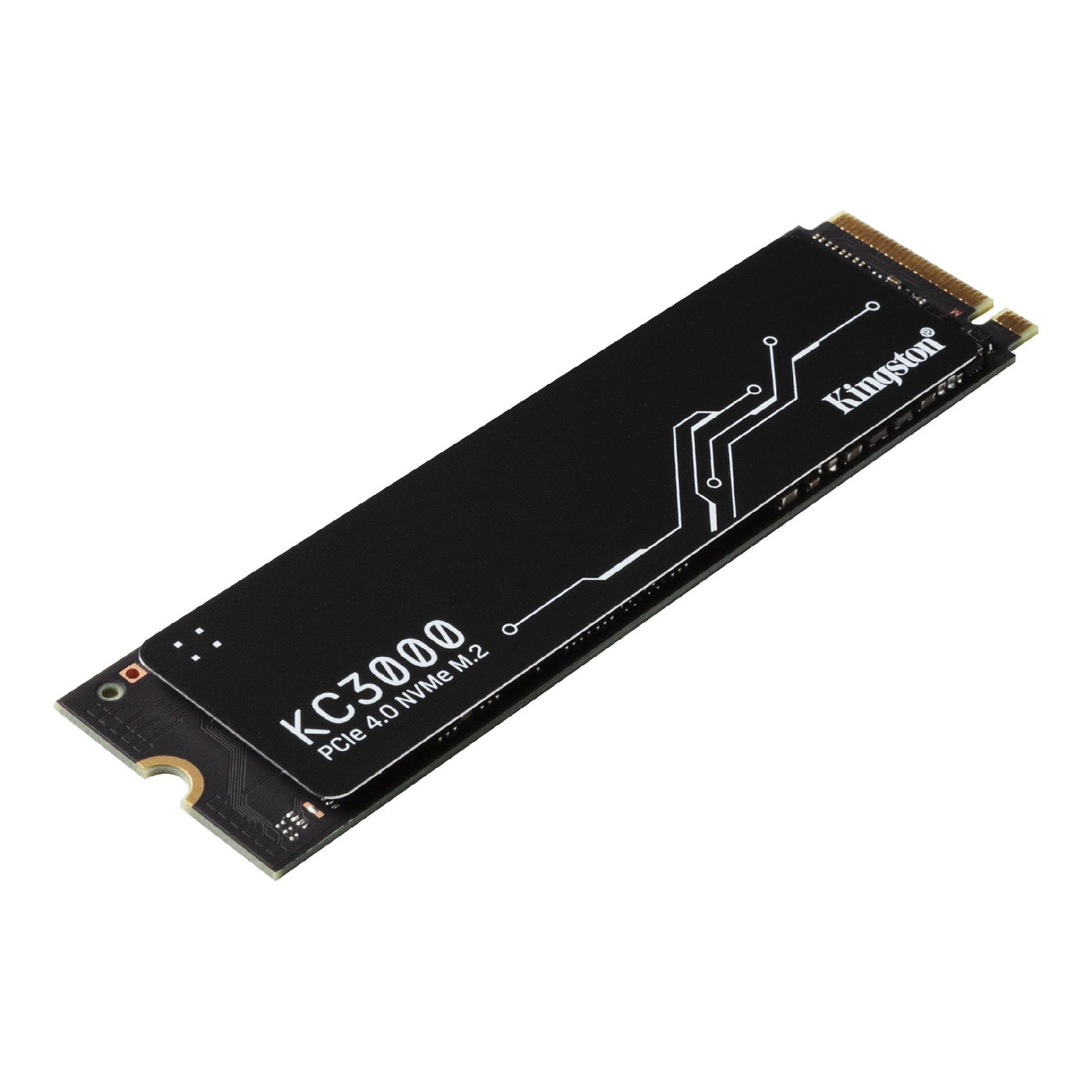

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD
Brand：Kingston
KC3000 PCIe 4.0 NVMe M.2 SSDHigh-performance storage for desktops and laptopsKingston KC3000 PCIe 4.0 NVMe M.2 SSD uses the latest Gen 4x4 NVMe controller and 3D TLC NAND to deliver next-generation performance.Upgrade your system's storage and reliability to meet demanding workload demands and experience ···
KC3000 PCIe 4.0 NVMe M.2 SSDHigh-performance storage for desktops and laptops
Kingston KC3000 PCIe 4.0 NVMe M.2 SSD uses the latest Gen 4x4 NVMe controller and 3D TLC NAND to deliver next-generation performance. Upgrade your system's storage and reliability to meet demanding workload demands and experience better performance for software applications such as 3D rendering and 4K+ content creation. With powerful performance of up to 7,000MB/sec1 read /write speeds, it improves workflow on high-performance desktops and laptops, making it ideal for power users who demand the fastest speeds on the market.
The compact M.2 2280 design fits perfectly into the motherboard, bringing greater flexibility to power users who require exceptional responsiveness and loading speeds.
Provides various storage capacities ranging from 512GB to 4096GB to meet data storage requirements .
| physical dimension | M.2 2280 |
| Transmission interface | PCIe 4.0 x4 NVMe |
| Storage capacity 2 | 512GB, 1024GB, 2048GB, 4096GB |
| controller | Phison E18 |
| NAND | 3D TLC |
| Sequential read/write speed | 512GB – 7,000/3,900MB/sec 1024GB – 7,000/6,000MB/sec 2048GB – 7,000/7,000MB/sec 4096GB – 7,000/7,000MB/sec |
| Random 4K read/write speed1 | 512GB – up to 450,000/900,000 IOPS 1024GB – up to 900,000/1,000,000 IOPS 2048GB – up to 1,000,000/1,000,000 IOPS 4096GB – up to 1,000,000/1,000,000 IOPS |
| Total Bytes Written (TBW) 3 | 512GB – 400TBW 1024GB – 800TBW 2048GB – 1.6PBW 4096GB – 3.2PBW |
| Power consumption | 512GB – 50mW idle / 0.34W average / 2.7W (max) read / 4.1W (max) write 1024GB – 50mW idle / 0.33W average / 2.8W (max) read / 6.3W (max) 2048GB write – 50mW idle / 0.36W average / 2.8W (max) read / 9.9W (max) write 4096GB – 50mW idle / 0.36W average / 2.7W (max) read / 10.2W (max value) written |
| storage temperature | -40°C~85°C |
| Operating temperature | 0°C~70°C |
| size | 80mm x 22mm x 2.21mm (512GB-1024GB) 80mm x 22mm x 3.5mm (2048GB-4096GB) |
| weight | 512GB-1024GB – 7g 2048GB-4096GB – 9.7g |
| Seismic strength during operation | Maximum 2.17G (7-800Hz) |
| Seismic strength when not in operation | Maximum 20G (20-1000Hz) |
| MTBF | 2,000,000 hours |
| Warranty/ Support4 | 5-year limited warranty, free technical support |
